Composite Infiltration Irrigation Pipe Production Line

The Composite Infiltration Irrigation Pipe Production Line is a high-efficiency system designed to produce drip irrigation tape for agricultural applications. With precision control, energy-saving technology, and advanced automation, it ensures superior performance in greenhouse, field crop, and water conservation irrigation systems.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Product Description

Product Description


This Composite Infiltration Irrigation Pipe Production Line delivers high-speed, automated production of drip irrigation tape, designed for agricultural water applications. It offers precision control with a PLC intelligence system, energy efficiency, and high capacity. Ideal for greenhouse irrigation, field crops, and landscaping, this machine maximizes productivity while reducing labor and energy consumption. Featuring advanced dripper insertion and automatic winding systems, it ensures smooth operation and reliability.

High-Efficiency Irrigation Production System

The Composite Infiltration Irrigation Pipe Production Line offers an advanced solution for the manufacturing of high-quality drip irrigation tape. Engineered for efficiency, this machine helps farmers meet irrigation needs with up to 25% higher capacity and 15% energy savings compared to standard systems. Whether for large-scale agricultural operations or smaller applications, this machine ensures precision and high-speed production.

Precision and Automation for Superior Results

Equipped with a PLC-controlled dripper insertion system, the production line ensures precise placement and consistent production quality. The laser sensor-driven perforating system allows for highly accurate dripper hole punching, ensuring optimal water distribution. The vacuum cooling tank and servo-driven winding unit streamline the process, minimizing manual intervention while maintaining top-notch quality. This production line is ideal for drip irrigation tape used in greenhouse and field crop irrigation, delivering reliable results with minimal maintenance.

Advanced Features for Agricultural Irrigation

With a robust design and high-quality components, including SKF bearings and stainless steel (SS304), this machine is built for long-term use in demanding environments. The remote control system enhances usability, enabling operators to monitor production from a distance. Safety features such as air bubble detection, anti-rotation, and tape break alarms ensure smooth and safe operations throughout the production process. For farmers focused on water conservation and efficient irrigation, this machine offers the perfect solution.


Key Product Features


  • Energy-Efficient Design: Reduces energy consumption by 15%, saving costs.

  • High-Speed Output: Capable of achieving 180m/min, increasing production efficiency by over 25%.

  • Advanced Control Systems: Features PLC synchronization for dripper insertion and haul-off speed.

  • Automated Winding & Cutting: Reduces manual labor with automatic coil changing and precise cutting functions.

  • Durable Construction: Made with high-quality steel and SKF bearings for long-lasting performance.

  • Customizable for Various Irrigation Needs: Ideal for both greenhouse and field crop applications.


Product Parameters



Item
1Tape Diameterφ12mm,φ16mm,φ20mm
2Tape Thickness0.2~0.9mm
3Design Production Speed200m/min
4Central Line Height1000mm
5Machine DirectionFrom right to left
6Irrigation ProductHorticultural crops


DRIP IRRIGATION TAPE MACHINE DETAIL INTRODUCTION-- 180m/min speed model


1. Extruder & Cross Die Head
Extruder driven by AC motor; with ABB converter,
SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed

Special designed cross type die head; high quality mould steel 40Cr, which is processed by imported CNC machinery.

2. Vacuum tank & Cooling tank

made by high quality SS304; high quality vacuum pump & water pump
special design calibrator for drip tape making
air bubble detecting and alarm system; tape break down stop function; tape anti-rotation system etc
3. Perforating Machine & Tractor
driven by servo motor and servo controller, with high precision punching degree
Laser sentor to auto tracking dripper positon, and with image system to check punching hole condition
Intelligent control system with remote control system

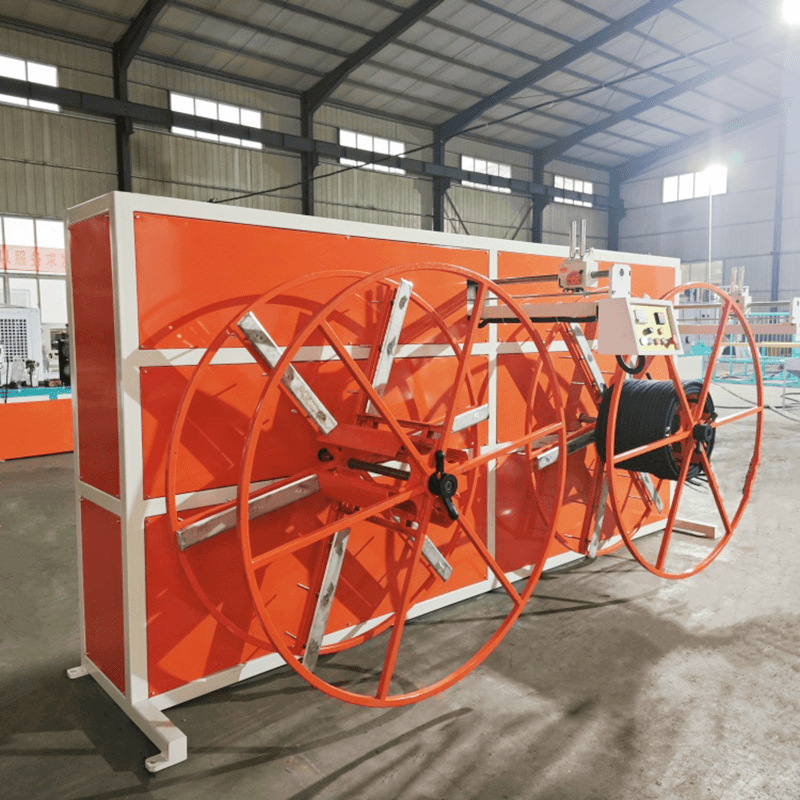

4. Drip Tape Winding Machine
servo type traversing device, driven by SIEMENS servo motor
with tension control device to auto adjust winding speed
Auto tape cutting, and auto new coil changing , with protection

separate SIEMENS PLC control system


01 WHY CHOOSE US?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world.

02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .

03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .

04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.
