Custom-designed State-of-the-art Bellows Production Line

Custom-designed State-of-the-art Bellows Production Line

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

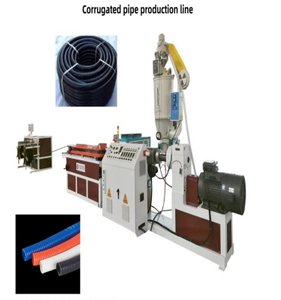

Product Introduction of Bellows Production Line

This series plastic single wall corrugated pipe extrusion line can produce PP/PE/EVA/PVC/PA corrugated pipe.
Corrugated pipe produced by our machine has the features of high production speed, even corrugated shape,straight pipe seam, and smooth surface.
By equipped with vacuum pump and vacuum type mould,it can produce difffernt use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe, shisha hookah hose pipe etc).

Normal speed single wall corrugated pipe machine
Model	Pipe diameter	Extruder model	Motor powder	Production speed	Mold pairs	Vacuum pump(Optional)
14	5-14mm	SJ-45	11KW	6-8m/min	42
32	10-32mm	SJ-50	15KW	5-12m/min	50	1.5kw
50	16-50mm	SJ-65	30KW	3-10m/min	50	2.2kw
63	16-63mm	SJ-65	30KW	3-10m/min	50	2.2kw
110	32-110mm	SJ-75	37KW	3-6m/min	72	5.5kw

Product features:

1. Unique product structure and strong pressure resistance;
2. Smooth inner wall with large flow rate;
3. The product has convenient connection, good interface sealing, corrosion resistance, zero leakage, no scaling, and avoids secondary pollution, making it an ideal "green pipe";
4. The product has good flexural performance and can adapt to uneven soil settlement;
5. Long service life, up to 50 years of underground use;

6. The product is light in weight and convenient in construction, which can reduce construction costs and shorten construction cycles.
